VITAL TYPE CHAIN PULLEY BLOCK 0.5T*1.5M Single-pawl, German-quality LIFTING CHAIN

Name: VITAL TYPE CHAIN PULLEY BLOCK 05T15M Singlepawl Germanquality LIFTING CHAIN
Brand: Shuangyan
Price: 1 USD

Place of Origin : Chongqing, China (Mainland)

Brand Name : Shuangyan

Certification : CE, GS, ISO

Supply Ability : 20000 Carton/Cartons per Month

Packaging Details : Polybag, plywood, carton box and pallet

MOQ : 100pcs mixed models

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Delivery Time : 7-15 days

Condition : New

Usage : Construction Hoist

Power Source : Hand Chain

Sling Type : Chain

Maximum Lifting Weight : 0.65T

Maximum Lifting Height : 1.5M

Lift Speed : Manual

Warranty : 1 Year

Product name : Vital Type Chain Block

Company Type : Manufacturer

History : >40 years

Factory area : 27000 square meters

Main Products : Manual chain block, lever hoist, load chain, beam trolley, spare parts

Spare parts self-produced : Hooks, plates, chains, covers, etc.

Colors available : Orange, red, blue, green, etc

Function : Construction hand tool

Origin : Chongqing, China

Application : Warehouse,Mining,construction,bridge

After-sales Service Provided : No overseas service provided

Port : Chonqging or Shanghai

Contact Now

PRODUCT:

VITAL TYPE MANUAL CHAIN BLOCK

SPECIFICATION:

MODEL		HSZ-K0.5	HSZ-K1	HSZ-K1.5	HSZ-K2	HSZ-K3	HSZ-K5	HSZ-K10	HSZ-K15	HSZ-K20
CAPACITY	TON	0.5	1	1.5	2	3	5	10	15	20
LIFTING HEIGHT	M	2.5	2.5	2.5	2.5	3	3	3	3	3
TEST LOAD	TON	0.63	1.25	2.0	2.5	4	6.3	12.5	20	25
CHAIN PULL TO LIFT FULL LOAD	N	260	323	356	390	370	410	436	460	440
DIAMETER OF LOAD CHAIN	MM	5	6	7.1	8	7.1	9	10	10	10
NO. OF LOAD CHAIN		1	1	1	1	2	2	4	6	8
DIMENSIONS	A	138	156	184	198	230	285	383	435	680
	B	128	144	153.5	162.5	153.5	184	184	184	229
	C	310	370	400	410	530	670	750	1000	1040
	D	29	30	33	33	47	50	62	80	80
NET WEIGHT	KGS	7.5	10.2	15	16	21.5	36	70	117	162
EXTRA WEIGHT PER METER OF EXTRA LIFT	KGS	1.4	1.7	1.9	2.2	3	4.4	9.4	13.5	18.6

DETAILED PICTURES:

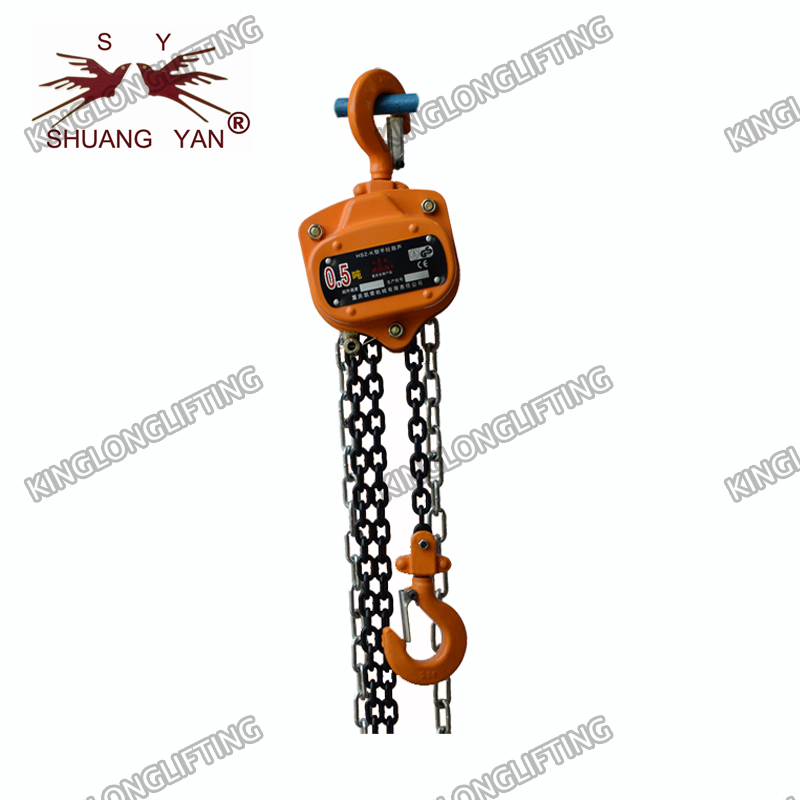

VITAL TYPE CHAIN PULLEY BLOCK 0.5T*1.5M Single-pawl, German-quality LIFTING CHAIN

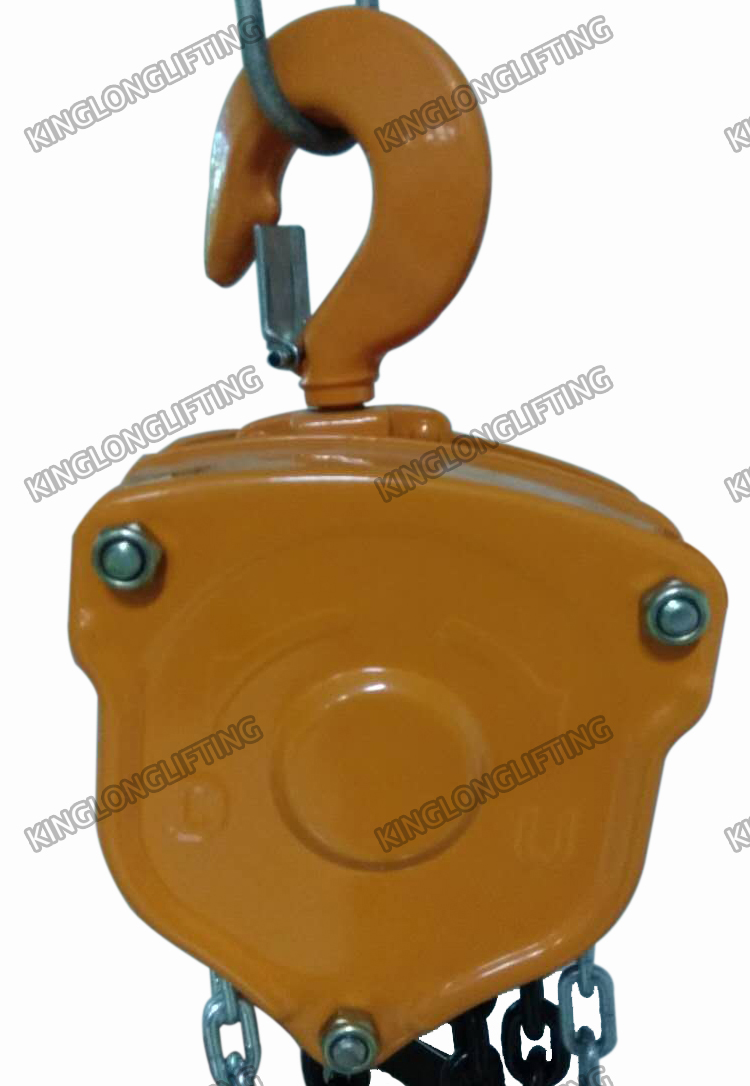

Single Pawl: (Double Pawls are optionable, contact supplier)

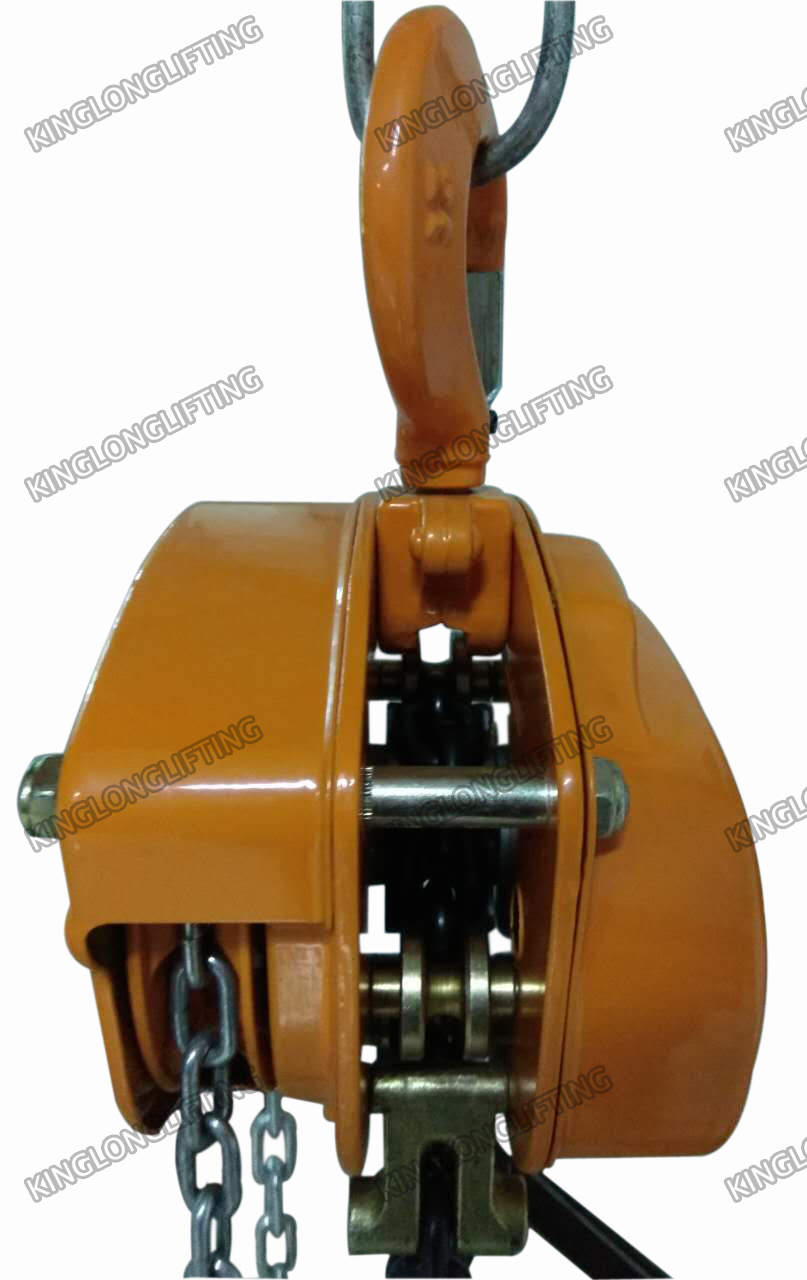

VITAL TYPE CHAIN PULLEY BLOCK 0.5T*1.5M Single-pawl, German-quality LIFTING CHAIN

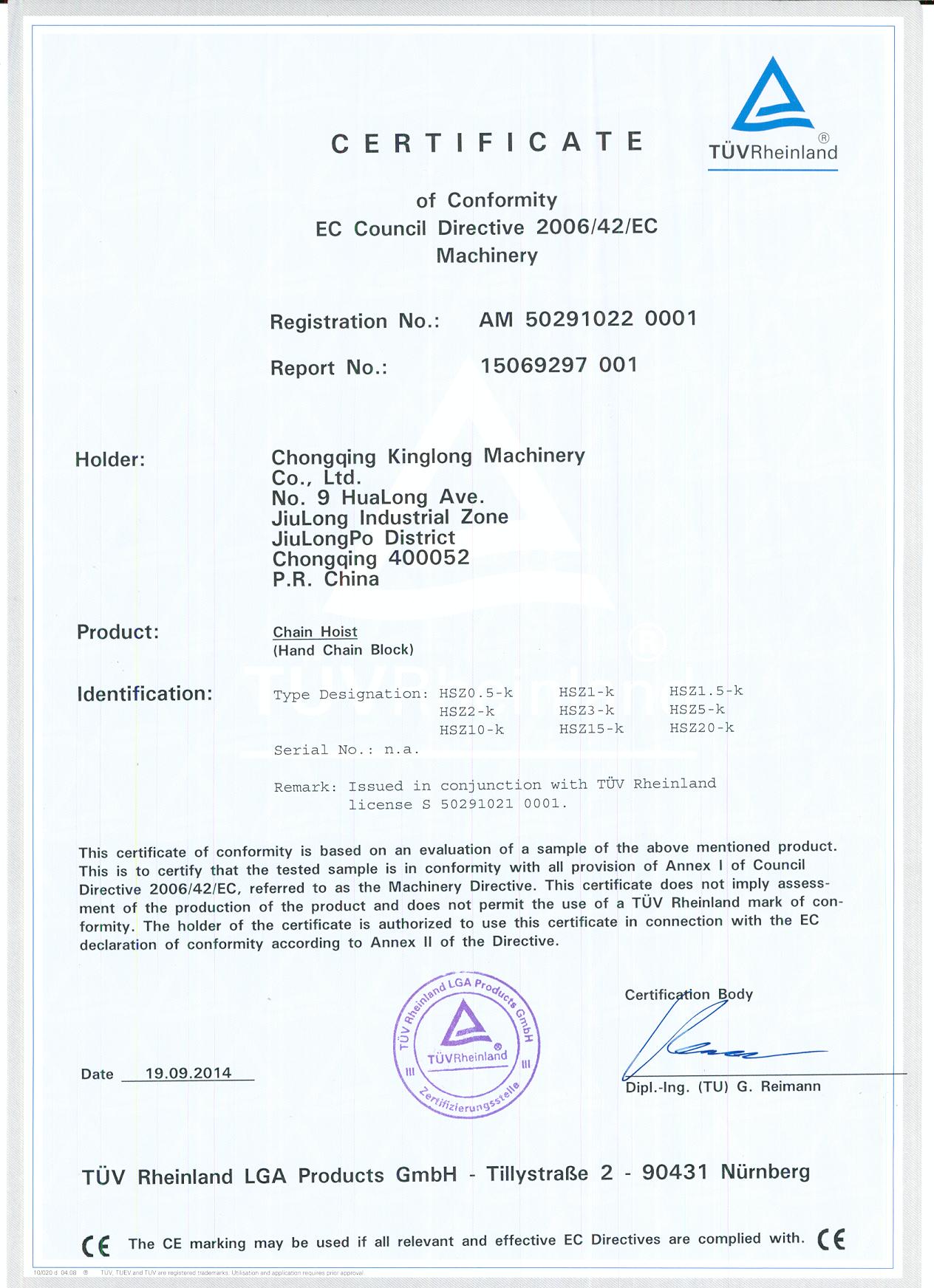

Certificates: CE, GS, ISO

How we control quality?

A. Perfect craftsmanship.

B. Products 100% tested before shipment.

C. Chain machines imported from Germany and Italy, and chain quality complied to and over industrial standard.

D. Skilled workers, mature techniques, on-time delivery and researched and developed team.

Customization:

A. Nameplate

B. Lable

C. Carton/Shipping mark

D. Bar Code

E. Logo on product

Etc.
