Construction Work High Level Strength Lifting Chain Block 10 Ton

Brand Name : KingLong

Model Number : HSZ

Certification : ISO 9001, GS, CE

Place of Origin : Chongqing

MOQ : 100pcs mixed models

Price : US$158 - US$166

Supply Ability : 20000 pieces/ month

Delivery Time : 20 days

Packaging Details : carton box or plywood box

Name : heavy duty lift chain block hoist

Application : construction work

Capacity : 10 ton

lifting height : 3 m

Color : red color

Material : Q345B

Load chain : manganese steel

Chain color : polished

Contact Now

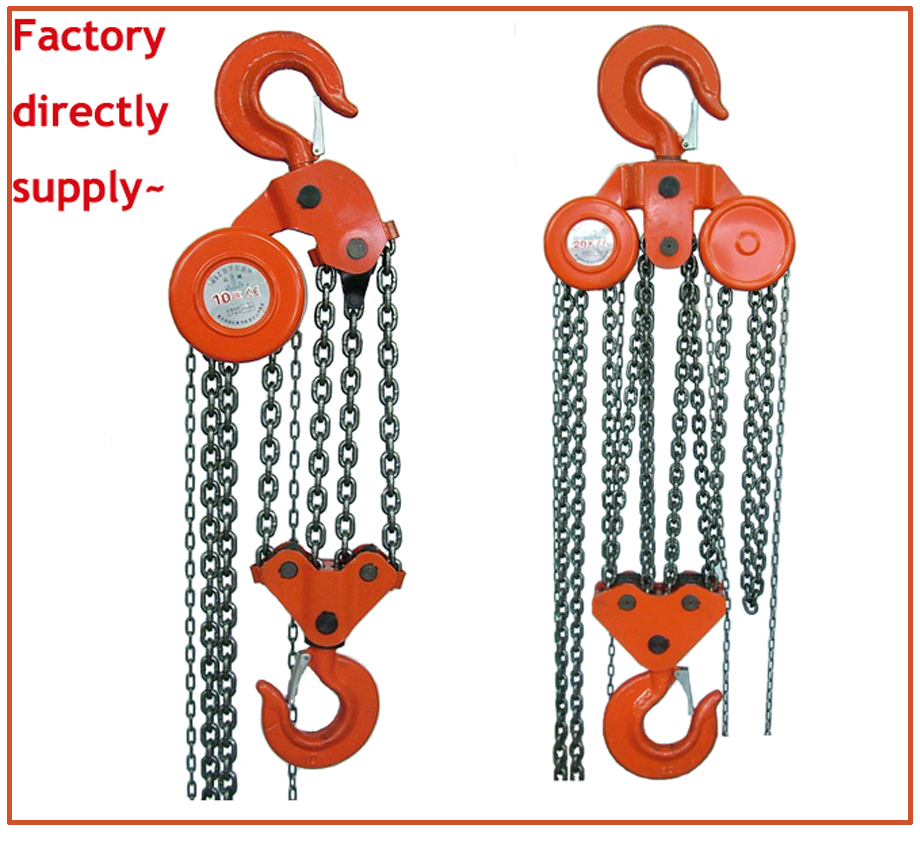

Big Capacity Construction Work High-Level Strength Lifting Chain Block

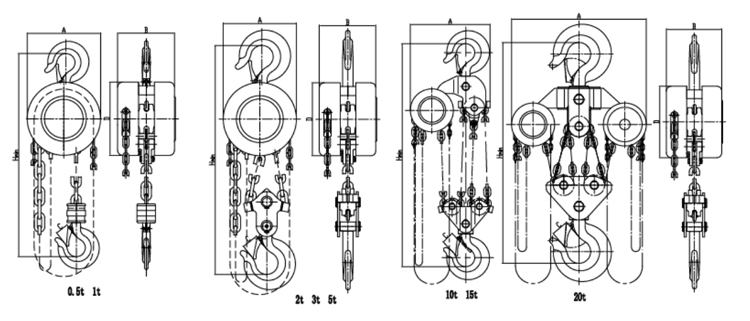

Products Drawing and Specification:



Construction Work High Level Strength Lifting Chain Block 10 Ton



Model   HSZ-0.5 HSZ-1 HSZ-1.5 HSZ-2 HSZ-3 HSZ-5 HSZ-7.5 HSZ-10 HSZ-20
Capacity Ton 0.5 1 1.5 2 3 5 7.5 10 20
Lift m 2.5 2.5 2.5 2.5 3 3 3 3 3
Test Load Ton 0.625 1.25 1.87 2.50 3.75 6.25 9.375 12.5 25

Min.Distance

Between Hooks

 mm 280 300 360 380 470 600 650 730 1000
Chain pull to lift full load N 170 340 390 340 390 420 395 450 450
No. of load chain   1 1 1 2 2 2 3 4 8
Diameter of load chain mm 6 6 8 6 8 10 10 10 10
Dimensions mm A 142 142 178 142 178 210 336 358 580
B 126 126 142 126 142 165 165 165 195
C 24 28 32 34 38 48 57 64 82
D 142 142 178 142 178 210 210 210 210
Net weight kg 9.5 10 15 14 24 36 53 68 150
Gross weight kg 10 10.3 15.7 14.5 24.8 37.3 64 79 173
Packing measurement(LWH) cm 25*18*16 25*18*16 26*23*18 27*20*16 32*23*18 41*30*21 25*18*17 62*50*27 80*70*36
Extra weight per meter of extra lift kg 1.7 1.7 2.3 2.5 3.7 5.3 7.7 9.7 19.4





Production Description:



  •  10 ton * 3 m
  •  color red
  •  grade 80 chain, diameter 10 mm, polished color

Construction Work High Level Strength Lifting Chain Block 10 Ton

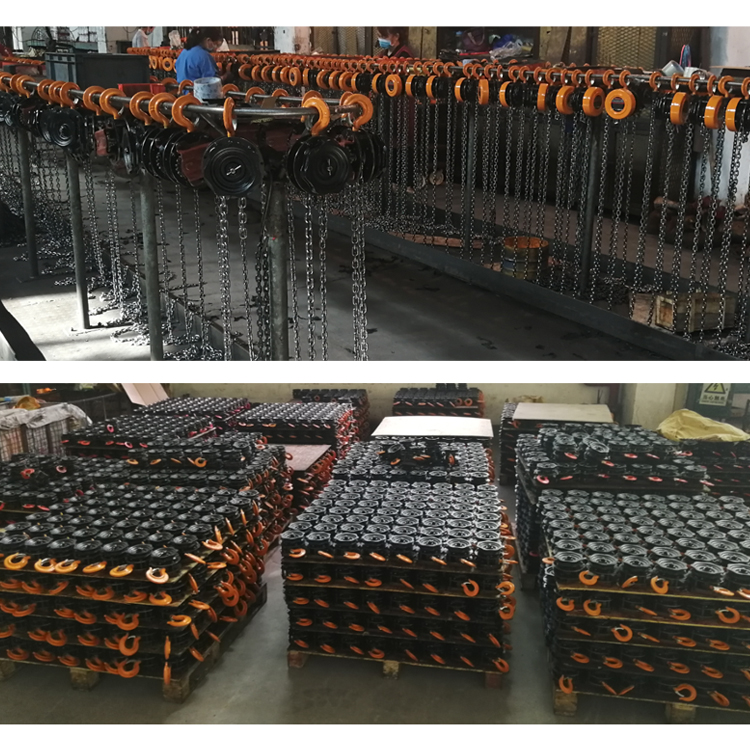

Producing Picture Showing:

Construction Work High Level Strength Lifting Chain Block 10 Ton





Package Options:



  1.  carton box
  2.  plywood case
  3.  wooden case
  4.  pallet
  5.  per your requirements



Construction Work High Level Strength Lifting Chain Block 10 Ton





Certification of GS and CE 2020



Construction Work High Level Strength Lifting Chain Block 10 Ton





Company Information:



Chongqing KingLong Machinery Co.,LTD founded in April 22th 1999. The former company name is Chongqing Chain Block Works. Untill now, it go through over 50 years in chain block area.
We are located in No.9 Hualong Ave, Jiulong Industrial Zone, Jiulongpo Dist, Chongqing, China. With over 100 emplyees, our factory has 27000 square meters including chain block assembly line, lever block & beam trolley assembly line, chains assembly line, different parts model workshops, parts treatment workshop, warehouse, office house ect.
Our factory get ISO9001 certification, GS and CE certifications. anually over 20,0000pcs chain blocks and one million meters loading chains.
